Creating Designs with SoundStructure Studio
4 - 9
Once the finish button is clicked, the SoundStructure Studio software will

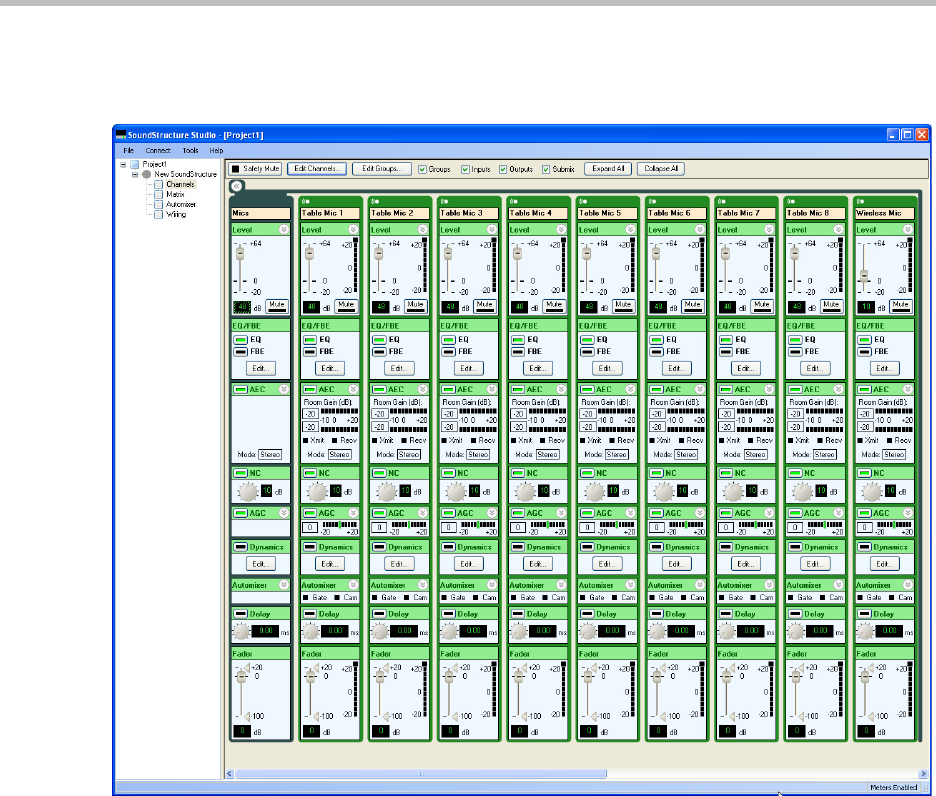

create the entire design file including defining all the virtual channels and
virtual channel groups such as those shown the following figure.
The next chapter will describe how to customize the SoundStructure device
settings.
If working online, the Ethernet port on the project tree on the left of the screen
will have a large green dot next to the device name. When working offline
there will be a gray dot next to the device name.
