Advanced Applications
9 - 35

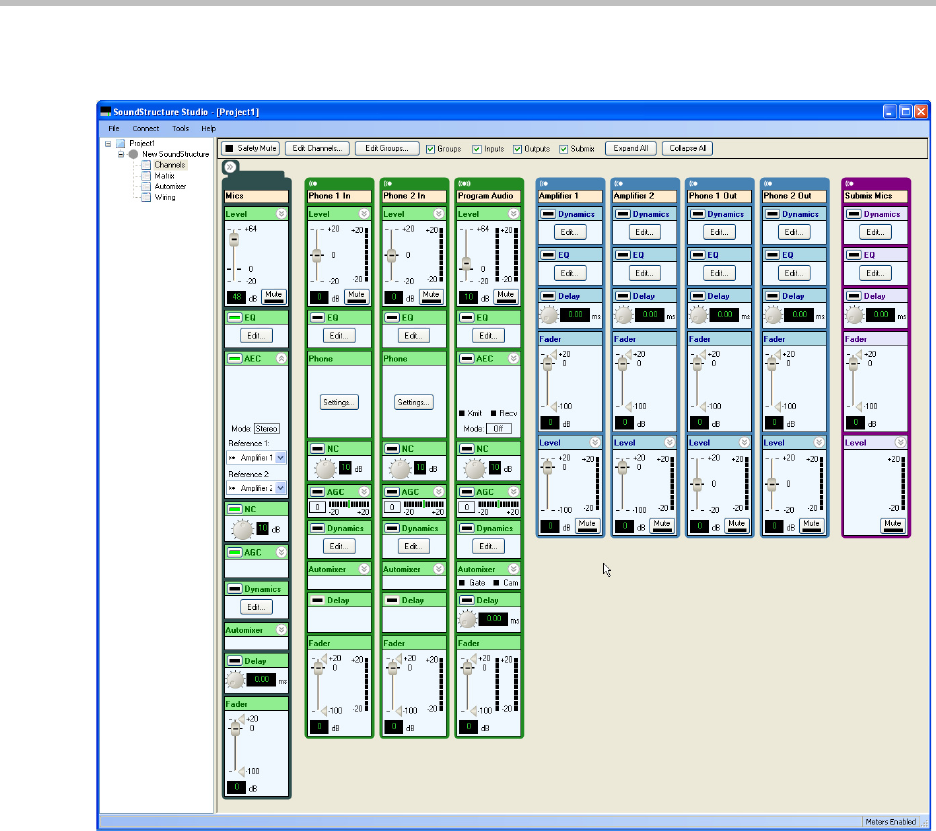

By default the two AEC references have been set to the two mono amplifiers
“Amplifier 1” and “Amplifier 2” and is then shown to be in stereo mode.
