Installing SoundStructure Devices
7 - 25
• Creating new blank partial presets
Partial presets consist of a sequence of commands that will be executed in the
order they appear in the partial preset. If an entry is removed from a full pre-
set, the full preset becomes a partial preset.
If there is only one full preset, entries in the preset may not be deleted or added
to ensure there is at least one full preset.
When there is more than one full preset, entries in a preset may be removed by

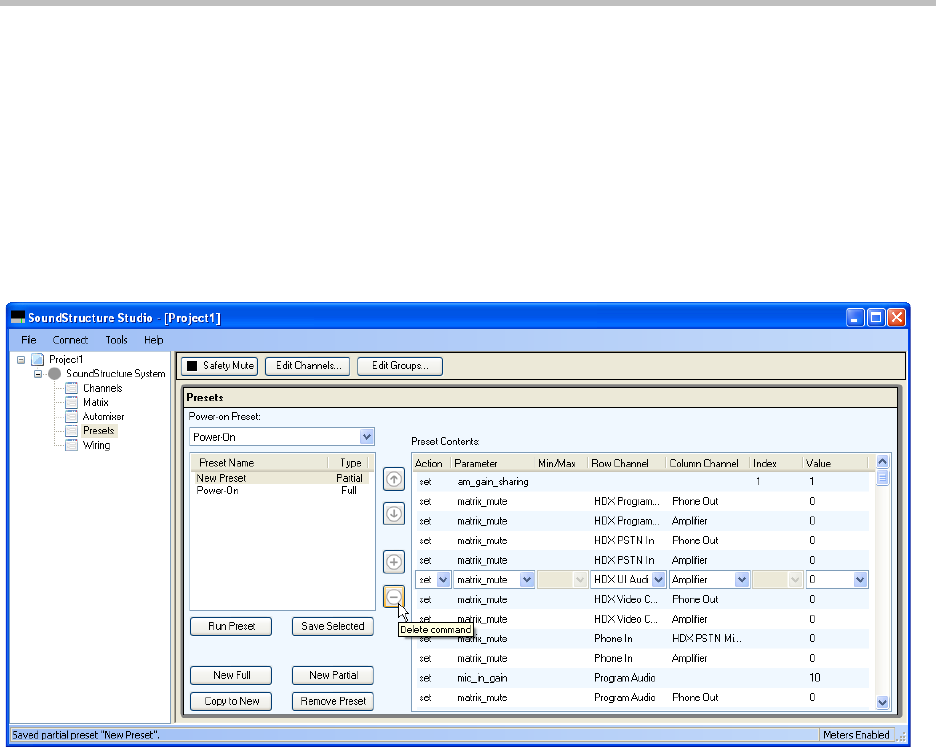

clicking the ‘-’ symbol as shown in the following figure. Once a line is deleted
from a full preset, it becomes a partial preset automatically.
- Design Guide 1
- C16, C12, C8, and SR12 1
